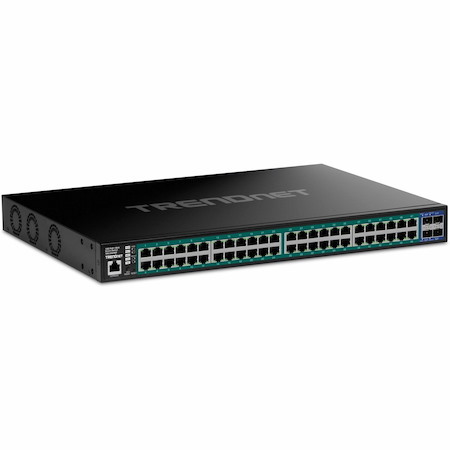

DEVICE INTERFACE: 48 x Gigabit PoE+ Ports; 4 x 10G SFP+ Ports; LED Indicators; Reset Button; Rack Mountable
SWITCHING CAPACITY: The Web Smart Gigabit PoE+ switch provides 48 gigabit (RJ-45) poe+ ports with 176Gbps switching capacity.
POE POWER: A 740W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
WEB SMART MANAGEMENT: The 52 Port PoE+ Switch provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
IPv4/IPv6 STATIC ROUTING: Free up router resources by offloading routing processes to the managed PoE+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level.
INTEGRATION FLEXIBILITY: The Gigabit PoE+ network switch managed features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
10G SFP+ PORTS: The network switch has four shared 10 gigabit SFP+ ports for high-speed network connections, providing acost-effective solution in adding 10G link capability to increase you network throughput.
TRAFFIC MANAGEMENT: This web smart Ethernet switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN,
Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
TRENDnet LIFETIME PROTECTION: The 52 Port Gigabit PoE+ Switch comes with lifetime TRENDnet Manufacturer Protection.
- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Line
- Web Smart
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet PoE+
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 1000Base-T
- 10GBase-X
- I/O Expansions
- Number of Total Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bz
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 740 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Power Consumption
- 52 W
- Physical Characteristics
- Product Material
- Metal
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 12.2"
- Weight (Approximate)
- 10.41 lb
- Miscellaneous
- Package Contents
- Web Smart TPE-3524SF Ethernet Switch
- Quick Installation Guide
- Power Cord (1.5m / 5 ft.)
- Console Cable (1m / 3.28 ft.)
- Rackmount Brackets
- Application/Usage
- Network
- IP Camera
- VoIP Phone
- Wireless Access Point
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
