- Ideal for Use in Aggregation Layer
- 4× 10 Gbps SFP+ Slots
- 20× Gigabit SFP Slots, 4× SFP/RJ45 Combo Ports
- 1+1 Redundant Power Supply
- Centralized Management
- Omada App
- Ethernet Ring Protection Switching
- Static Routing
Easily Build a Whole 10G Multi-gigabit Network | Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Line
- JetStream
- Product Type
- Ethernet Switch
- Technical Information
- Features
- DHCP Snooping
- DHCP Relay
- Zero-Touch Provisioning (ZTP)
- Built-in Fan
- Remote Monitoring (RMON)
- Interfaces/Ports
- Total Number of Network Ports
- 4
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 20 x Gigabit Ethernet Expansion Slot
- 4 × Gigabit Ethernet TP/SFP Combo
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 10/100/1000Base-T
- I/O Expansions
- Total Number of Expansion Slots
- 28
- Expansion Slot Type
- SFP (mini-GBIC)
- SFP+
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 24
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ah
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1ab
- Management & Protocols
- Manageable
- Yes
- Data Link Protocols
- HTTP
- HTTPS
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Power Consumption
- 35.70 W
- Physical Characteristics
- Product Material
- Steel
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Desktop
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 8.7"
- Miscellaneous
- Package Contents

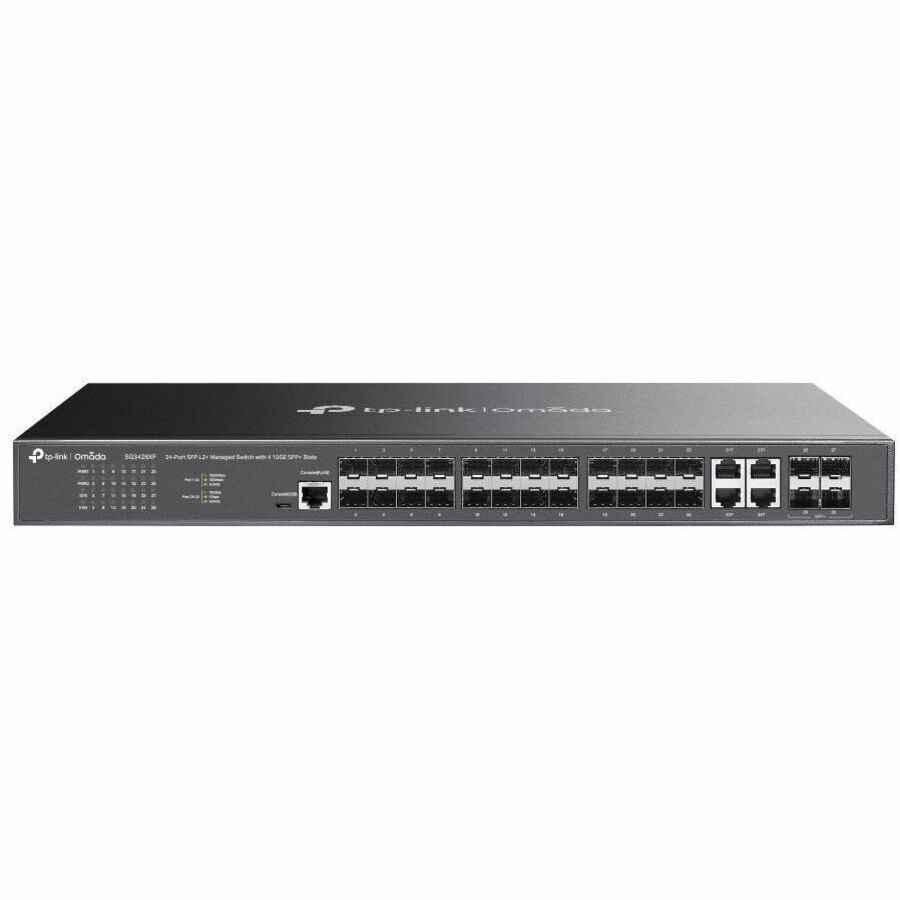

- 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
- Application/Usage
- Network
- Server
- Security
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
