- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- NetWay
- Product Line
- Spectrum
- Product Type
- Ethernet Switch

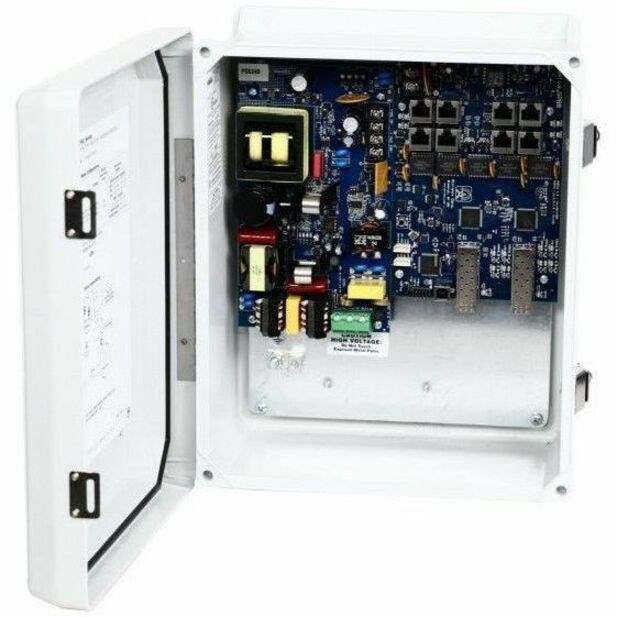

Altronix NetWaySP8WP2 supports up to 60W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) Ethernet ports. NetWaySP8WP2 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Surge Protection
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x 100BASE-T PoE+RJ-45 Network Port
- 2 x 10/100/1000BASE-T Gigabit Ethernet Hi-PoE RJ-45 Network Port
- 2 x Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 240 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Enclosure
- Height
- 13.3"
- Width
- 11.3"
- Depth
- 5.6"
- Weight (Approximate)
- 10.49 lb
- Miscellaneous
- Application/Usage
- Security
- Camera
- Outdoor
- Network
