- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- NetWay
- Product Line
- Spectrum
- Product Type
- Ethernet Switch

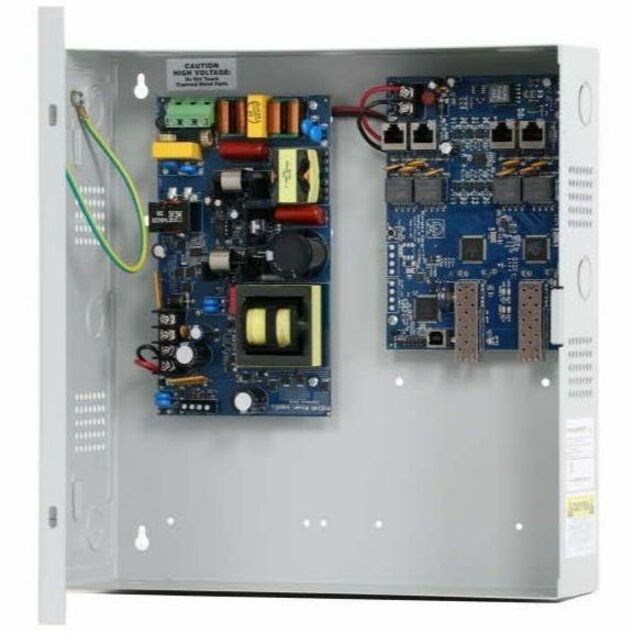

Altronix NetWaySP4BTX supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTX accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Surge Protection
- Interfaces/Ports
- Total Number of Network Ports
- 4
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Netwoek Port
- 2 x Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 240 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- AC
- Physical Characteristics
- Form Factor
- Wall Mountable
- Enclosure
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 6.86 lb
- Miscellaneous
- Application/Usage
- Security
- Indoor
- Camera
- Network
