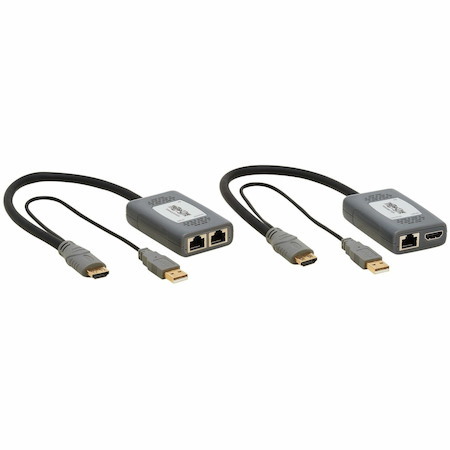

Tripp Lite by Eaton 1-Port HDMI over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA

  • Part: 1048931
$187.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Video Extender Transmitter/Receiver

DisplayPort Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127U-111-PHPH extends 4K signals from an HDMI source to an HDMI monitor up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. The one-foot pigtail design of the transmitter and receiver makes the units easy to install, especially in tight spaces.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color

The B127U-111-PHPH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Create Daisy-Chain Installations with HDMI Outputs, DisplayPort Outputs or Both

The B127U-111-PHPH is compatible with additional HDMI (B127U-110-PH) and DisplayPort (B127U-110- PD) receivers (sold separately) in a four-link daisy-chain installation. Each additional receiver adds up to 230 feet (70.1 meters) to the maximum video transmission distance and up to a total of 920 feet (280 meters) for the entire installation. Note: See the installation diagram in the owner's manual for more information.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions

Say you have a brand new 4K/60 Hz HDTV in the living room, but want to also connect your Blu-ray player or media server to the older 1080p TV in the kitchen and the 4K/30 Hz monitor in your home office. The B127U-111-PHPH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected television to display video at its maximum resolution without affecting the other outputs.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution

To monitor the video signal being extended to the transceiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Plug-and-Play Operation for Quick Setup and Use

The included transmitter and receiver units work right out of the box with no software required. Both feature a one-foot USB-A pigtail connector as the primary power source. Plug the USB connector on the transmitter into a USB-A power adapter (such as U280-W01-QC3-1, sold separately), and plug the receiver into the display's USB-A port. User-supplied 24 AWG Cat6 cabling connects the transmitter and receiver. Note: The transmitter and receiver can also be powered through their Micro-USB ports.

TAA-Compliant for GSA Schedule Purchases

The B127U-111-PHPH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 1
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 229.99 ft
  • Video
    • Graphics Modes
    • 4K
    • Maximum Video Resolution
    • 3840 x 2160
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • DisplayPort
    • Yes
    • Number of Network (RJ-45) Ports
    • 4
    • Number of USB Ports
    • 4
    • Number of HDMI Inputs
    • 1
    • Number of HDMI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Transmitter Height
    • 0.73"
    • Transmitter Width
    • 1.85"
    • Transmitter Depth
    • 2.95"
    • Receiver Height
    • 0.73"
    • Receiver Width
    • 1.85"
    • Receiver Depth
    • 2.95"
    • Transmitter Weight (Approximate)
    • 8.80 oz
    • Receiver Weight (Approximate)
    • 8.80 oz
  • Miscellaneous
    • Package Contents
      • 1 x Transmitter
      • 1 x Receiver
      • Owner's Manual
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS) 3
    • Waste Electrical and Electronic Equipment Directive (WEEE)
