StarTech.com USB-C KVM Switch, 2 Port DisplayPort KVM w/ 4K 60Hz UHD HDR Video, 3.5mm Audio, USB Type-C KVM Switch, 6x USB Hub Ports, Thunderbolt 3/4 Compatible - Hot Key Switching

  • Part: 1021604
$370.14

Availability

In Stock

This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.

4K 60Hz Resolution

This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 2x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Analog and Digital Audio

This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.

Intuitive Control

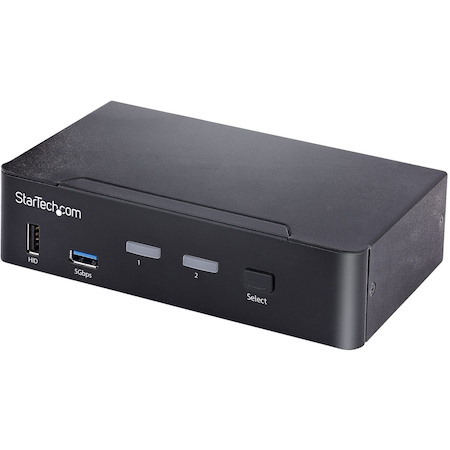

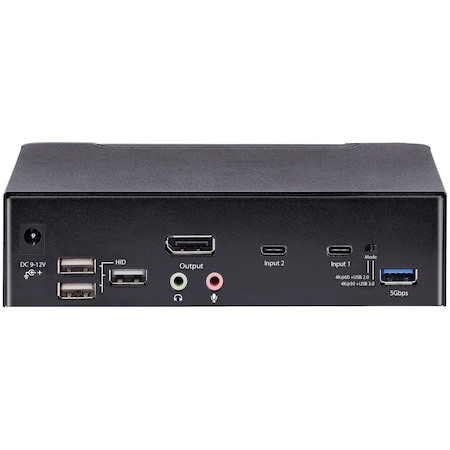

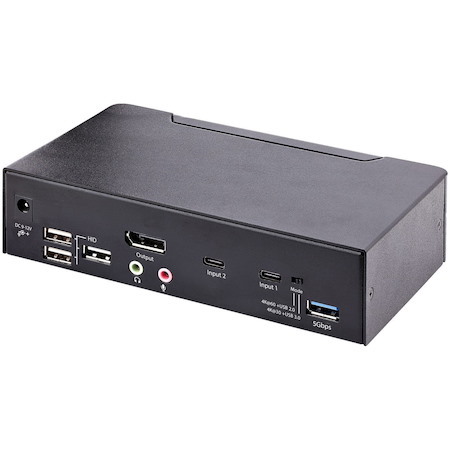

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.

This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

  • General Information
    • Manufacturer
    • StarTech.com
    • Manufacturer Website Address
    • http://www.startech.com
    • Brand Name
    • StarTech.com
    • Packaged Quantity
    • 1
    • Product Type
    • KVM Switchbox
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Number of Computers Supported
    • 2
    • Number of Local Users Supported
    • 1
  • Interfaces/Ports
    • USB
    • Yes
    • DisplayPort
    • Yes
    • Number of USB Ports
    • 8
    • Number of DisplayPorts
    • 1
  • Environmental Conditions
    • Minimum Operating Temperature
    • 32°F (0°C)
    • Maximum Operating Temperature
    • 104°F (40°C)
  • Power Description
    • Input Current
    • 1.20 A
    • Input Voltage Range
    • 100 - 240 AC
    • Power Plug Type
    • Type M
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Height
    • 1.6"
    • Width
    • 5.5"
    • Depth
    • 6.3"
    • Weight (Approximate)
    • 1.40 lb
  • Miscellaneous
    • Package Contents
      • KVM Switchbox
      • 1 x Set Of Rubber Feet
      • 1 x Universal Power Adapter
      • 1 x Quick-Start Guide
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
