- General Information
- Manufacturer
- QNAP Systems
- Manufacturer Website Address
- http://www.qnap.com
- Brand Name
- QNAP
- Product Line
- Turbo NAS
- Product Type
- SAN/NAS Storage System
TS-1655 | Powerful 2.5GbE hybrid storage solution, 8-core high performance and 16-bay high capacity, and long-term availability
Balance performance and cost with hybrid storage. Designed for diversified business IT environments, the high-capacity TS-1655 has twelve 3.5-inch SATA drive bays (for HDDs) and four 2.5-inch SATA drive bays (for SSDs) with 2.5GbE high-speed connectivity. Fueled by an immense 8-core Intel Processor, the TS-1655 presents a secure, scalable, and complete business-ready storage solution for cross-team file sharing, collaboration, backup & disaster recovery, virtualization, and intensive data transmission. The TS-1655 will be available and supported by QNAP for an extended period (up to 2027), ideal for businesses requiring matching NAS models deployed in multiple locations.
- Dual 2.5GbE connectivity
High-speed 2.5GbE accelerates intensive file access, large backup/restoration tasks, virtualization, and multimedia transfer.
- SSD caching and AI acceleration
Two M.2 NVMe PCIe Gen 3 slots allow implementing SSD cache acceleration, SSD storage pool, or a Coral M.2 accelerator for faster image recognition.
- Flexible PCIe expansion
Three PCIe slots allow for installing 5/10/25GbE adapters, Fibre Channel cards, or QM2 cards to increase application performance.
- Virtual machines and containers
Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV.
- Hybrid cloud
Realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency cloud data access.
- Storage scalability
Satisfy ever-growing storage needs by connecting flexible and economical QNAP expansion enclosures.
Eight cores up to 2.8 GHz, Intel® QuickAssist Technology, and up to 128 GB memory

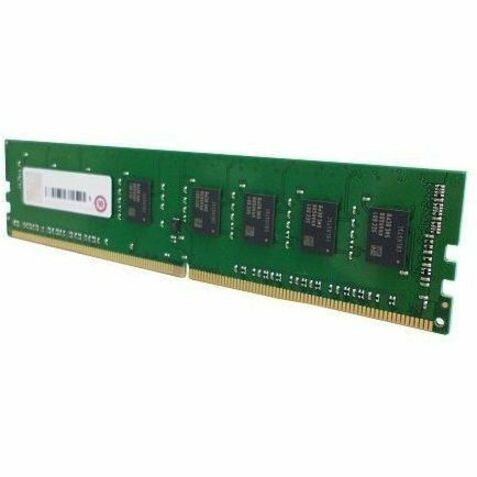

The TS-1655 adopts the Intel® Atom® C5125 8-core 2.8 GHz processor that supports Intel® QuickAssist Technology (QAT), offloading computationally-intensive compression and improving IPsec/SSL cryptography performance. The TS-1655 comes with four UDIMM DDR4 slots (8 GB preinstalled) that can be upgraded to 128 GB for higher workloads. Error-Correcting Code memory is also supported to deliver server-grade performance and reliability for rugged enterprise IT environments as a cost-efficient NAS solution.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- The TS-1655 is backed by a 3-year warranty at no additional cost.
- Storage
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 12
- Number of Solid State Drive Installed
- 0
- Flash Memory Capacity
- 5 GB
- Processor & Chipset
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Atom
- Processor Model
- C5125
- Processor Core
- Octa-core (8 Core)
- Processor Speed
- 2.80 GHz
- Memory
- Standard Memory
- 8 GB
- Memory Technology
- DDR4 SDRAM
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 2.5"/3.5" Bays
- 12
- Number of Total Expansion Slots
- 3
- Expansion Slot Type
- PCI Express 3.0 x4
- Controllers
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60, JBOD
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 4
- Number of USB 3.2 Gen 1 Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Software
- Operating System
- QuTS hero 5.0.1
- Management & Protocols
- Protocols
- IPv4
- IPv6
- DHCP
- CIFS/SMB
- AFP
- NFSv3
- FTP
- FTPS
- SFTP
- TFTP
- HTTP
- HTTPS
- Telnet
- SSH
- iSCSI
- SNMP
- SSL/TLS
- FXP
- WEBDAV
- LDAP
- DDNS
- DNS
- SNMPv2
- SNMPv3
- PPTP
- L2TP
- NFSv4
- Power Description
- Maximum Power Supply Wattage
- 550 W
- Physical Characteristics
- Height
- 11.6"
- Width
- 14.6"
- Depth
- 12.6"
- Form Factor
- Tower
- Weight (Approximate)
- 29.01 lb
- Miscellaneous
- Package Contents
- Turbo NAS TS-1655-8G SAN/NAS Storage System
- 1 x Ethernet Cable
- 1 x Power Cord
- 36 x Flat Head Screw (for 3.5" HDD)
- 36 x Flat Head Screw (for 2.5" HDD)
- 2 x Drive Tray Keys
- Quick Installation Guide (QIG)
