- General Information
- Manufacturer
- Opticon Sensors Europe
- Manufacturer Website Address
- http://www.opticon.com
- Brand Name
- Opticon
- Product Type
- Barcode Scanner

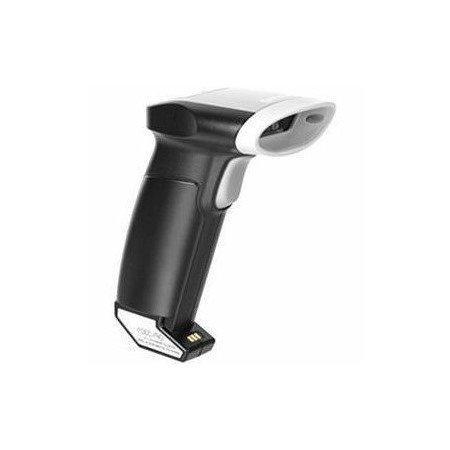

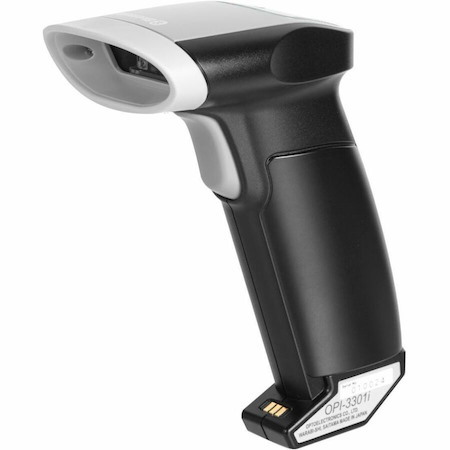

The Opticon OPI-3301i features a high speed, 2D Imager barcode scanner and a lightweight, ergonomic design that is perfect for all day, everyday use in a wide variety of industries including retail, healthcare, warehousing and distribution, and transportation and logistics. The cordless, cable-free freedom of Bluetooth® wireless communication offers the ability to roam away from the host device, which improves productivity and scanning convenience. The OPI-3301i is built to survive and thrive due to its IP42 sealing rating against dust and moisture and 5 foot drop specification. The scanner is also Apple MFI certified for the added ease of connecting and communicating with iOS host devices. OPI-3301i product highlights include:
- Wireless 2D CMOS imager scanner that rapidly scans and decodes 1D and 2D barcodes at 60 Frames Per Second (FPS)
- Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
- Memory: 1MB SDRAM, 1MB Flash ROM
- Small form factor: 2.20" x 5.32" x 4.45" (WxHxD) and 4.5 ounces including battery
- Extremely durable: IP42 rating against dust and moisture and survives 5 ft drop to concrete
- Charges via cradle (CHG-3201-sold separately), Bluetooth dongle available (OPA-3201)
- Backed by a two year warranty
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
1D:
- JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS ), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN -ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
2D:
- Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
POSTAL CODES:
- Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
- Light Source
- Laser
- Image Sensor Type
- Imager
- Scan Mode
- Trigger
- Scanning Distance
- 9.84"
- Features
- Beep
- Notification LED
- Vibration
- Ergonomic Design
- Number of Keys
- 1
- Field of View (Horizontal)
- 40°
- Field of View (Vertical)
- 26°
- Reading Angle (Skew)
- 50°
- Reading Angle (Pitch)
- 50°
- Reading Angle (Roll)
- 180°
- Image Formats
- BMP
- JPEG
- Maximum Ambient Light
- 100000 lux
- Drop Specification
5 ft (1.5 m) drop onto concrete surface
- Minimum Print Contrast
- 20%
- Minimum Element Resolution (Code 39)
- 5 mil
- Maximum Element Resolution (Code 39)
- 0.21"
- Image Sensor Resolution
- 752 x 480
- Illumination Type
- LED
- Memory
- Standard Memory
- 1 MB
- Flash Memory
- 1 MB
- Network & Communication
- Bluetooth
- Yes
- Power Description
- Input Current
- 330 mA
- Standby Current
- 15 mA
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 1100 mAh
- Maximum Battery Run Time
- 3 Hour
- Environmental Conditions
- Operating Temperature
- 32°F (0°C) to 122°F (50°C)
- Storage Temperature
- -14°F (-25.6°C) to 140°F (60°C)
- Humidity (Non-condensing)
- 20% to 85%
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Black
- Product Material
- Acrylonitrile Butadiene Styrene (ABS)
- Durability
- Dust Resistant
- Height
- 5.3"
- Width
- 2.2"
- Depth
- 4.5"
- Weight (Approximate)
- 4.66 oz
- Miscellaneous
- Package Contents
- OPI-3301i 2D CMOS Imager Barcode Scanner
- Wrist Strap
- Compatibility
Apple iPad, iPhone, iPod
- Ingress Protection (IP) Rating
- IP42
- Application/Usage
- Retail
- Healthcare
- Warehouse
- Distribution
- Transportation
- Logistics
- Country of Origin
- Japan
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
