- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Series
- T1/E1
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of ST Ports
- 1
- ST Port Type
- Duplex
- Number of RJ-48 Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 5.01 km
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- 62.5/125 µm
- 100/140 µm
- Network & Communication
- Carrier Supported
- T-carrier/E-carrier
- Network Technology
- T1/E1
- Power Description
- Input Voltage
- 120 V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- External
- Wall Mountable
- Height
- 1"
- Width
- 3.1"
- Depth
- 4.8"
- Weight (Approximate)
- 1 lb
- Miscellaneous
- Package Contents

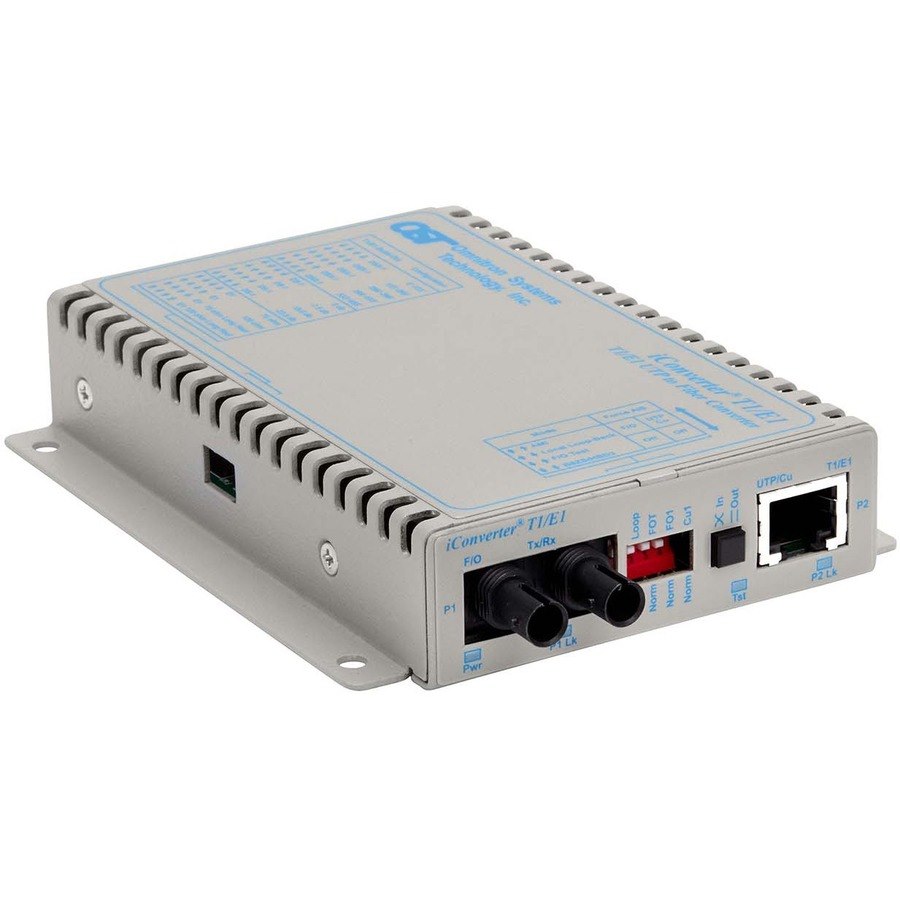

- iConverter T1/E1 ST Multimode 5km Wall-Mount Standalone US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
- Additional Information
Input Voltage:
- 5-32VDC via 2.5mm barrel (0.3A @ 9VDC)
- 100-120VAC/60Hz (0.05A @ 120VAC)
- Certifications & Standards
- Compliance:
- UL
- CE
- FCC Class A
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
