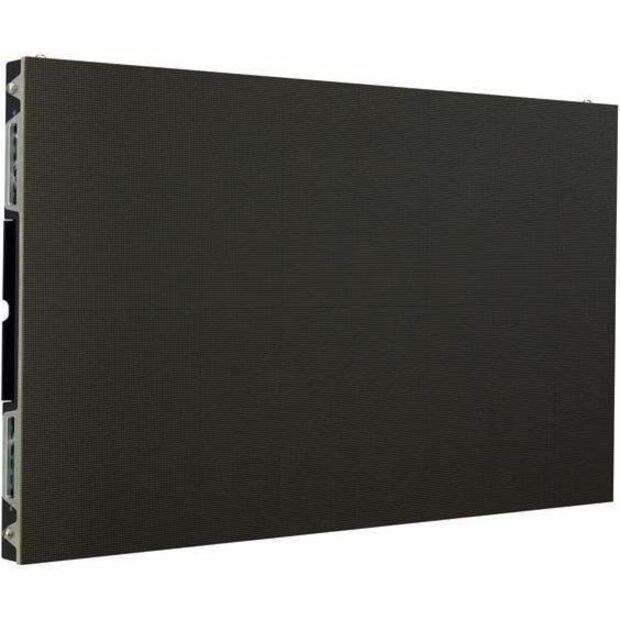

LG 1.88mm LSCB Curved Ultra Slim Indoor LED with Copper Connectors

  • Part: 2569210


Out of Stock

LSCB Direct View LED Customizable to fit your needs

For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations.

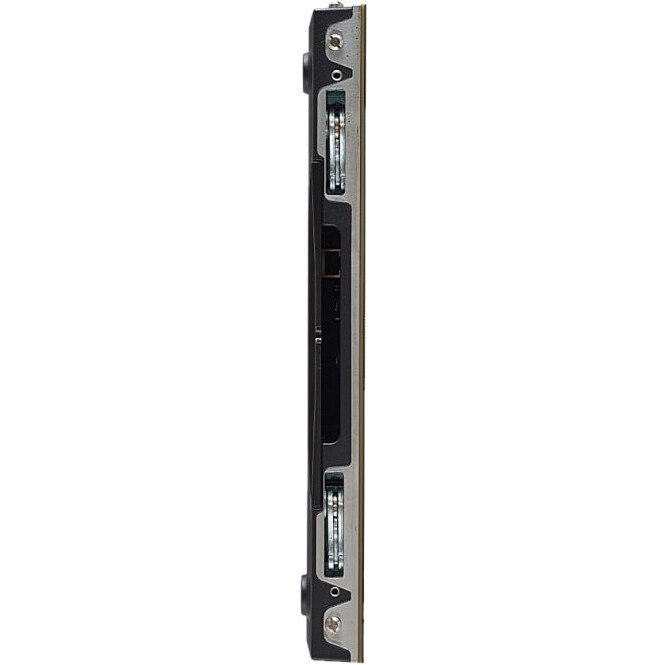

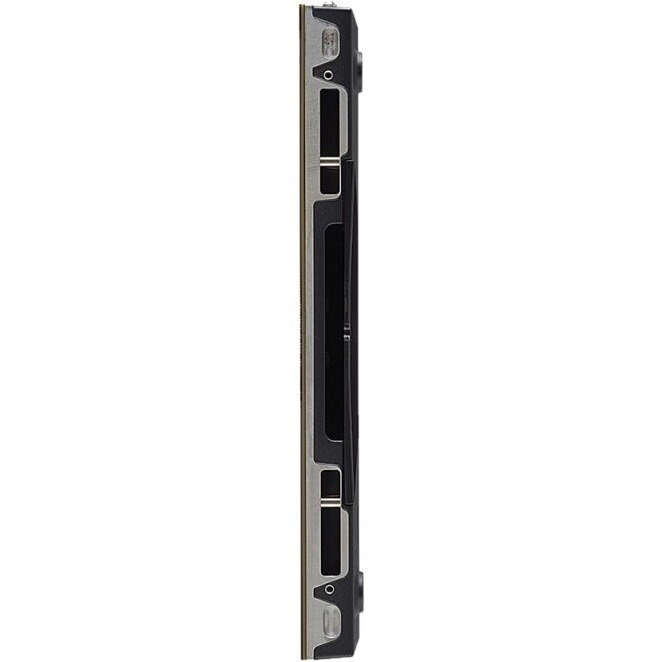

Ultra Slim Depth

The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.

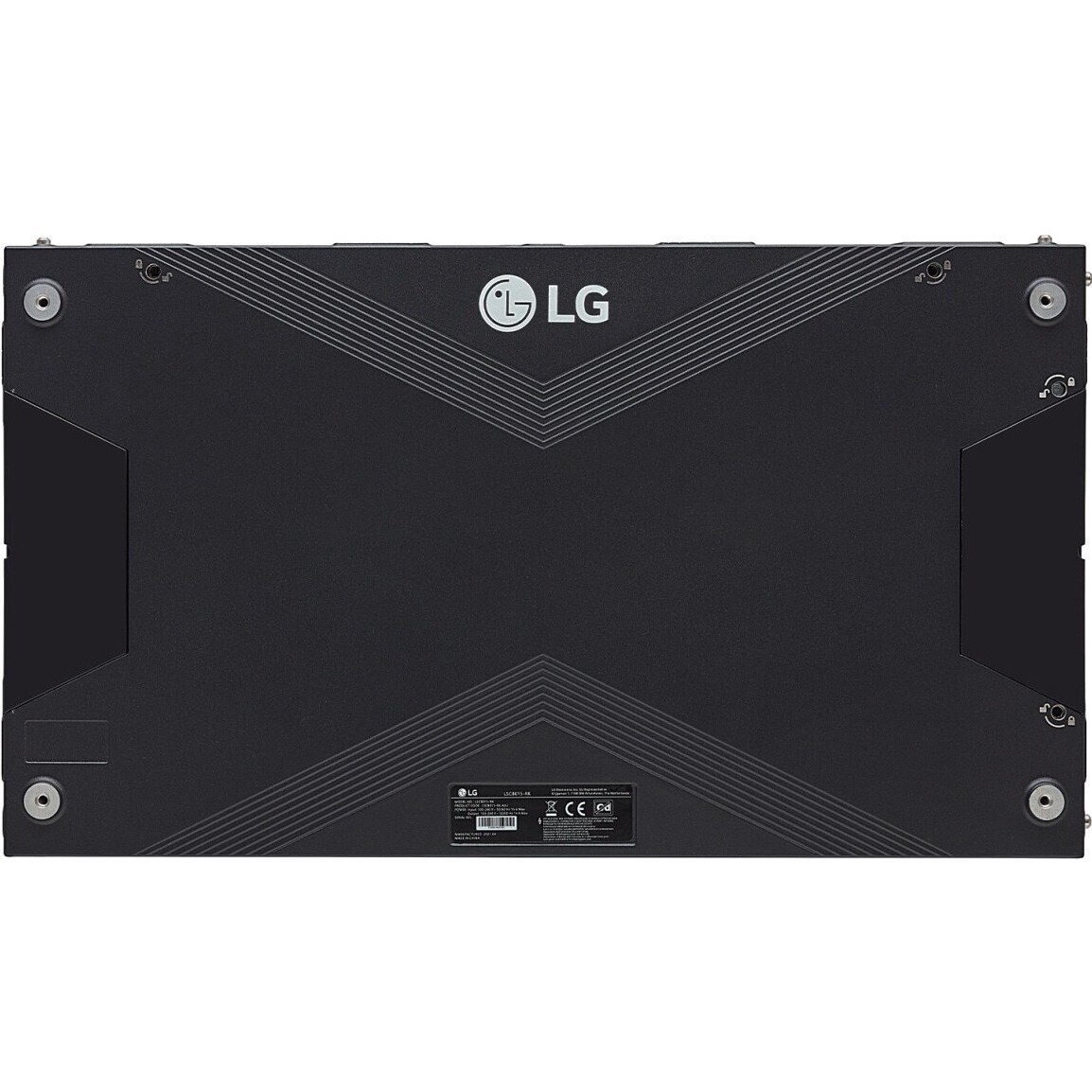

Front and Rear Installation and Maintenance

The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.

16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.

EMC Certified & Fire Resistant Design

The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.

Compatibility with LG Software Solution

Powered by LG's high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.

  • General Information
    • Manufacturer
    • LG Electronics
    • Manufacturer Website Address
    • http://www.lg.com/us
    • Brand Name
    • LG
    • Product Series
    • LSCB
    • Product Type
    • Digital Signage Display

  • Display & Graphics
    • Display Screen Type
    • LCD
    • Display Resolution
    • 160 x 90
    • High Dynamic Range (HDR)
    • Yes
    • High Dynamic Range (HDR) Type
    • HDR10
    • HDR10 Pro
    • Pixel Pitch
    • 73.8 mil
    • Backlight Technology
    • Direct View LED
    • Curved Screen
    • Yes
  • Video
    • Dynamic Contrast Ratio
    • 5,000:1
    • Color Depth
    • 14-bit
    • Brightness
    • 800 Nit
  • Software
    • Operating System
    • WebOS
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
  • Physical Characteristics
    • Height
    • 13.3"
    • Width
    • 11.8"
    • Depth
    • 1.4"
    • Weight (Approximate)
    • 6.80 lb
