- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Marketing Information

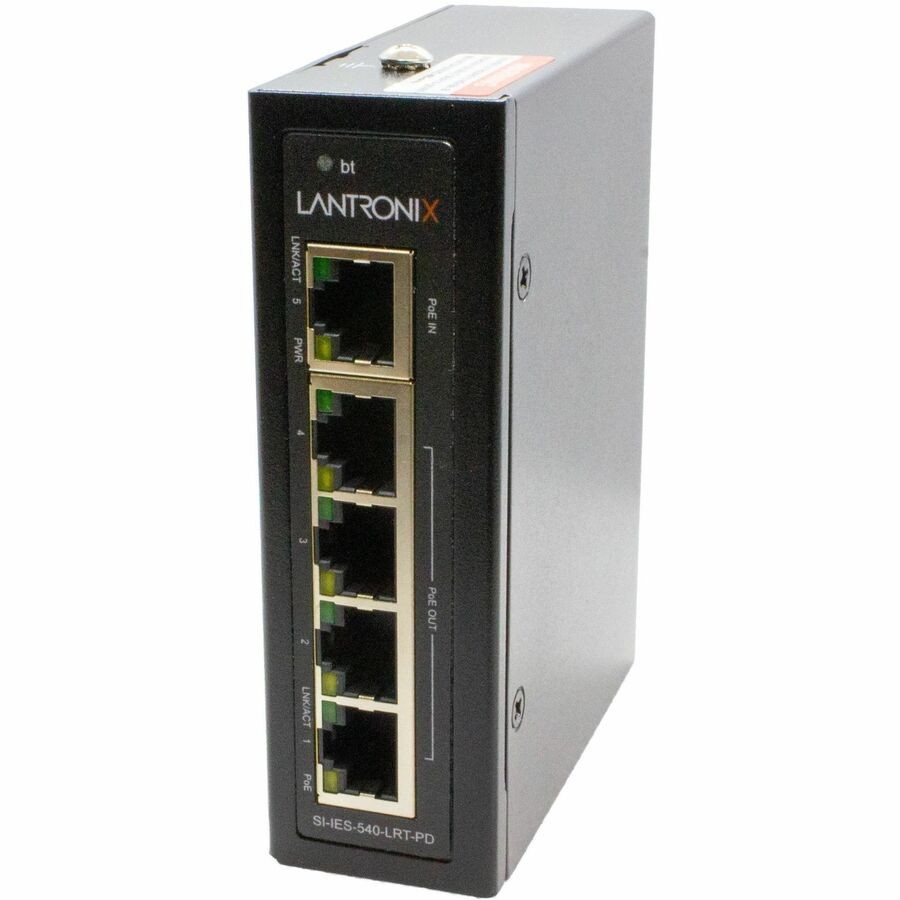

The SI-IES-540-LRT-PD Unmanaged, Hardened 1x4 PoE++ Splitter uses a single IEEE 802.3bt PoE++ switch port to provide data and power to up to four additional PoE/PoE+ devices. It is designed for applications with a mix of higher-power and lower-power devices, helping customers maximize their PoE++ switch-port and cabling investment without having to add nearby AC power or additional switch ports.
- Product Type
- PoE++ Splitter
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Protection Type
- Reverse Polarity
- Overload Current
- Power Description
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000Base-TX PoE++
- Output Ports
- 4 x 10/100/1000Base-TX PoE/PoE+
- Physical Characteristics
- Form Factor
- DIN Rail/Wall Mountable
- Mount Type
- DIN Rail/Wall Mountable
- Height
- 4.1"
- Width
- 1.3"
- Depth
- 3.2"
- Miscellaneous
- Package Contents
- Unmanaged Hardened 1x4 PoE++ Splitter
- DIN-Rail or Wall-Mount
- Certifications & Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- IEEE 802.3bt PoE++
- IEEE 802.3x Flow Control and Back Pressure
- IP30
- CSMA/CD
- CE
- UKCA
- FCC
- EN60068-2-6 (Vibration)
- EN60068-2-27 (Shock)
- EN60068-2-32 (Free Fall)
EMI:
- CISPR 32
- FCC Part 15B Class A
EMS:
- IEC61000-4-2 (ESD): Contact 6KV; Air 8KV
- IEC61000-4-4 (EFT): Power 2KV; Signal 2KV
- IEC61000-4-5 (Surge): Power 2KV; Signal 2KV
