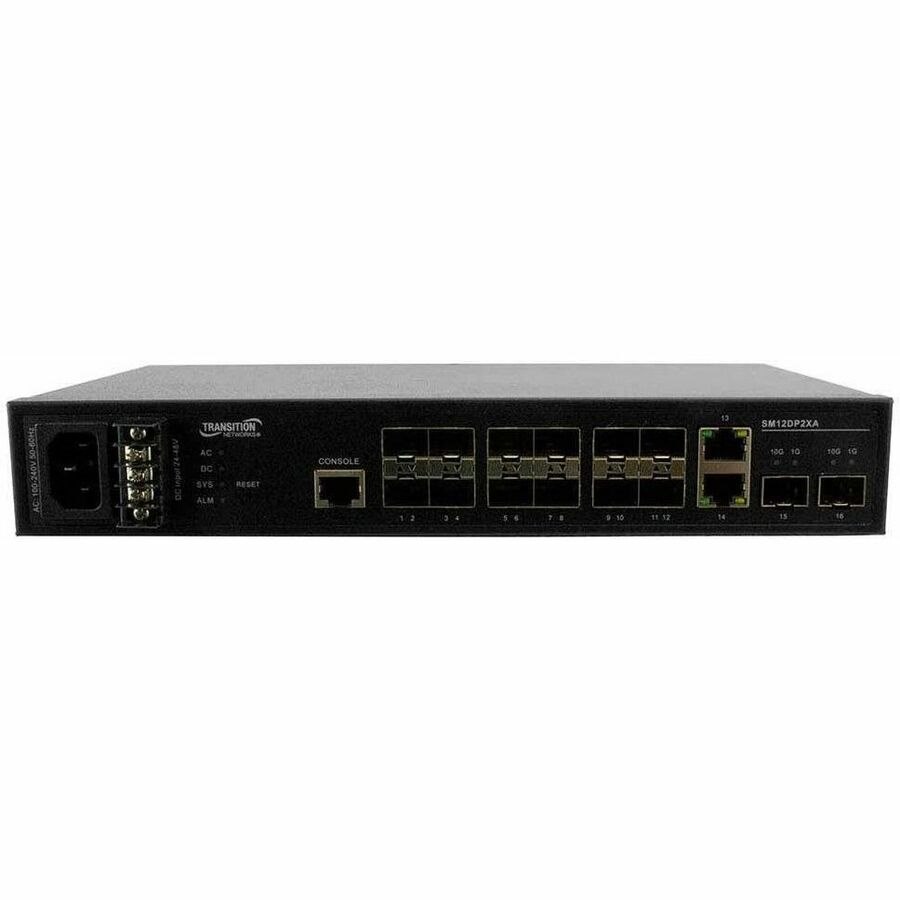

Managed Gigabit Ethernet Fiber Switch
(12) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots + (2) 10/100/1000Base-T RJ-45 Ports
This switch is a next generation fully managed fiber switch with 68Gbps switching capacity. It provides (12) 100/1000 dual speed SFP slots, (2) 1G/10G SFP+ slots and (2) additional Gigabit RJ-45 ports.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Series
- SM12DP2XA
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 2.0
- Modular
- Yes
- Stack Port
- No
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 12 x Gigabit Ethernet SFP
- 2 x 10 Gigabit Ethernet SFP+
- 2 Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 100/1000Base-FX
- 1000Base-X
- 10/100/1000Base-TX
- I/O Expansions
- Total Number of Expansion Slots
- 14.0
- Expansion Slot Type
- SFP (mini-GBIC)
- SFP+
- Shared SFP Slot
- No
- Number of SFP Slots
- 12
- Network & Communication
- Networking Standards
- IEEE 802.3ah
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.1ad
- IEEE 802.3at
- IEEE 802.3z
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.1ab
- IEEE 802.1w
- IEEE 802.3u
- IEEE 802.1D
- IEEE 802.3af
- IEEE 802.1ag
- IEEE 802.3x
- IEEE 802.1Q
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 48 V DC
- 230 V AC
- 24 V DC
- Power Source
- AC
- DC
- Power Consumption
- 24 W
- Physical Characteristics
- Height
- 1.7"
- Width
- 11"
- Depth
- 5.3"
- Weight (Approximate)
- 2.20 lb
- Miscellaneous
- Package Contents
- SM12DP2XA Ethernet Switch
- Application/Usage
- Network
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
