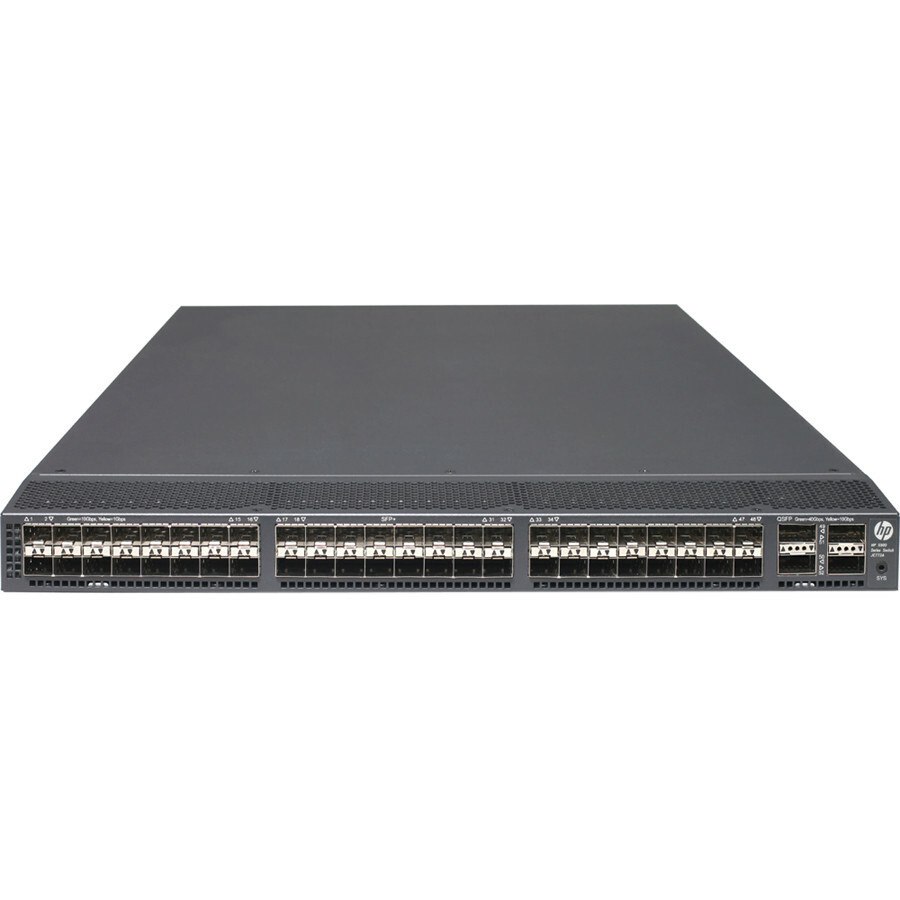

The HP 5900 Switch Series is a family of high-density, ultra-low-latency, top-of-rack (ToR) switches that is part of the HP FlexNetwork architecture's HP FlexFabric solution.
Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- 5900
- Packaged Quantity
- 4
- Product Type
- Layer 3 Switch
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Token Ring Port
- No
- LRE Port
- No
- Bypass
- No
- Management Port
- Yes
- USB
- Yes
- Number of Network (RJ-45) Ports
- 48
- Port/Expansion Slot Details
- 48 x 10 Gigabit Ethernet Network
- 4 x 40 Gigabit Ethernet Expansion Slot
- Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-T
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- QSFP+
- SFP
- SFP+
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- Intelligent Management Center
- CLI
- SNMPv1, v2c, v3
- Telnet
- Syslog
- VLAN
- QoS
- DHCP
- MIB II
- Memory
- Standard Memory
- 2 GB
- Memory Technology
- SDRAM
- Flash Memory
- 512 MB
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 26"
- Weight (Approximate)
- 28.66 lb
- Miscellaneous
- Package Contents
- 5900AF-48XGT-4QSFP+ Switch
- 8 x 58x0AF 650W AC Power Supply
- 8 x X712 Bck(pwr)-Frt(ports) HV Fan Tray
- Certifications & Standards
- IEEE Standards:
- 802.1Ds
- 802.1p
- 802.1Q
- 802.1s
- 802.1w
- 802.3ad
- 802.3ae
- 802.3ag
- 802.3ah
- UL 60950-1
- EN 60825-1
- EN 60825-2
- IEC 60950-1
- CAN/CSA-C22.2 No. 60950-1
- Anatel
- ULAR
- GOST
- EN 60950-1/A11
- FDA 21 CFR Subchapter J
- NOM
- VCCI Class A
- EN 55022 Class A
- ICES-003 Class A
- ANSI C63.4 2003
- AS/NZS CISPR 22 Class A
- EN 61000-3-2:2006
- EN 61000-3-3:1995+A1:2001+A2:2005
- EMC Directive 2004/108/EC
- FCC (CFR 47, Part 15) Class A
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
