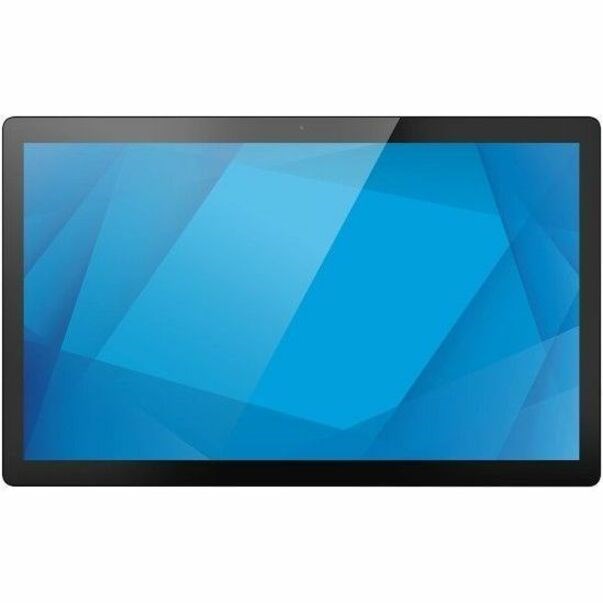

22-inch I-Series 5 | Touchcomputer
Elo's I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 22-inch Full HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.
Modular design. | Endless versatility.
Available in sizes ranging from 10 to 22 inches, easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Line
- I-Series 5
- Product Type
- POS Terminal
- Technical Information
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- Form Factor
- All-in-One
- Features
- Edge-to-Edge Glass Design
- Processor & Chipset
- Processor Manufacturer
- Qualcomm
- Processor Type
- Snapdragon
- Processor Core
- Octa-core (8 Core)
- Processor Model
- QCS6490
- Memory
- Standard Memory
- 8 GB
- Memory Card Slot
- Yes
- Memory Card Supported
- microSD
- Storage
- Flash Memory Capacity
- 64 GB
- Display & Graphics
- Screen Size
- 22"
- Active Display Size (Horizontal)
- 18.74"
- Active Display Size (Vertical)
- 10.54"
- Display Screen Type
- LED
- Screen Mode
- Full HD
- Touchscreen
- Yes
- Touchscreen Technology
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touch Points
- 10
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1,000:1
- Response Time
- 14 ms
- Color Supported
- 16.7 Million Colors
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Network & Communication
- Wireless LAN
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- USB
- Yes
- USB Type-C
- Yes
- Network (RJ-45)
- Yes
- Number of Micro USB 2.0 Ports
- 4
- Number of USB 3.0 Ports
- 1
- Number of USB Type C Ports
- 1
- Built-in Devices
- Webcam Frame Rate
- 3200 x 2400 @ 30 fps
- Number of Speakers
- 2
- Speaker Power
- 1.50 W
- Software
- Operating System
- Android 14
- Power Description
- Power Source
- DC Power
- AC Power
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 1.2"
- Width
- 20.7"
- Depth
- 12.8"
- Weight (Approximate)
- 8.40 lb
