- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Catalyst
- Product Series
- IE3200
- Product Condition
- Refurbished
- Product Type
- Ethernet Switch

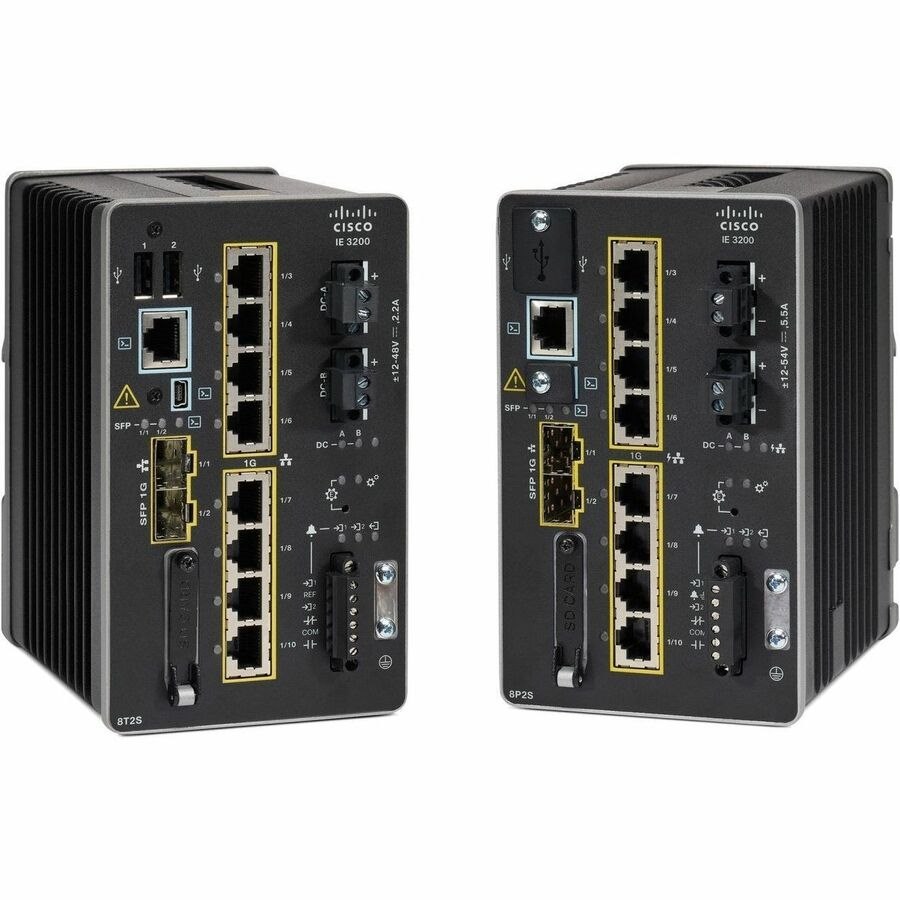

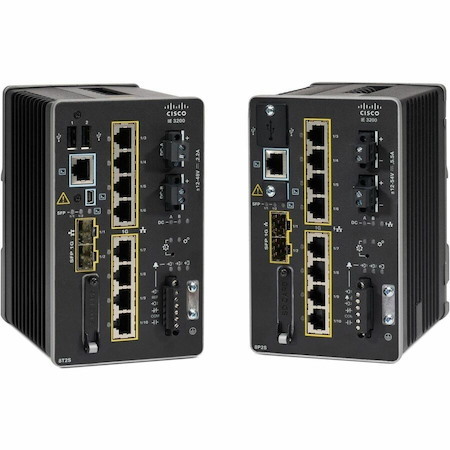

The Cisco Catalyst IE3200 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact form factor for a wide variety of extended enterprise and industrial applications.
Product overview
The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco Catalyst Center, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.
The IE3200 series supports power budget of up to 240W for PoE/PoE+, shared across 8 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T RJ-45 Network Port
- 2 x 100/1000BASE-X SFP Expansion Slot
- 1 x USB Mini Type B Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 100Base-X
- Maximum Data Transfer Rate
- 125 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.3ad
- IEEE 802.1p
- IEEE 802.3ah
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3u
- IEEE 802.1x
- IEEE 802.3ab
- IEEE 802.1ab
- IEEE 802.3z
- IEEE 802.3af
- IEEE 802.3at
- IEEE 1588v2
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 613125 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 240 W
- Input Voltage
- 60 V DC
- 48 V DC
- 54 V DC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- PoE+
- PoE
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 32 W
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Height
- 6"
- Width
- 3.6"
- Depth
- 5.3"
- Weight (Approximate)
- 3.80 lb
- Miscellaneous
- Application/Usage
- Wireless Access Point
- Network
- IP Camera
- Camera
- Industrial
- Outdoor
- Enterprise
