- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- ASR 9000
- Product Type
- Router Chassis

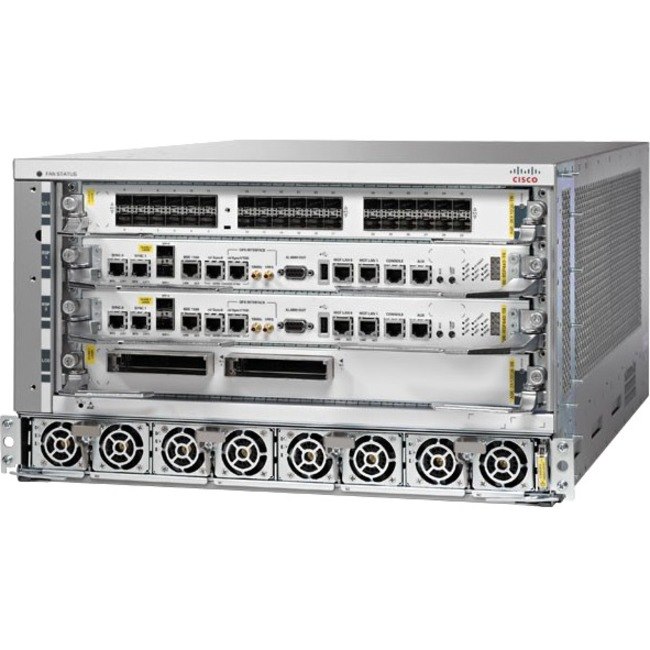

The Cisco ASR 9000 Series is an operationally simple, future-optimized platform using next-generation hardware and software. The following are highlights of this next-generation platform.
- The Cisco ASR 9000 System brings increased power and simplicity to the edge, and the ASR 9000v sets the industry benchmark as a virtualized compact carrier-class converged access and aggregation platform. Leveraging Cisco's "network virtualization" or nV Technology, the Cisco ASR 9000 System offers exceptional pay as you grow scale, carrier-class reliability, and simplified service provisioning.
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- USB
- No
- Powerline
- No
- Management Port
- No
- Token Ring Port
- No
- Serial V.35 Interface
- No
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- Line Card
- Route Switch Processor
- Network & Communication
- Ethernet Technology
- 100 Gigabit Ethernet
- Network Technology
- 100Base-TX
- Management & Protocols
- Security Features
- ACL
- AAA
- TACACS+
- Secure Shell Protocol
- MAC Addresses
- BPDU Filtering
- L2CP
- Control-Plane Security
- Dynamic ARP Inspection
- IPSec
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 6U
- Form Factor
- Rack-mountable
- Height
- 10.4"
- Width
- 17.8"
- Depth
- 25"
- Weight (Approximate)
- 122.80 lb
- Miscellaneous
- Certifications & Standards
NEBS:
- SR-3580: NEBS Criteria Levels (Level 3)
- GR-1089-CORE: NEBS EMC and Safety
- GR-63-CORE: NEBS Physical Protection
- VZ.TPR.9205: Verizon TEEER
ETSI Standards:
- EN300 386: Telecommunications Network Equipment
- 300 019 Storage Class 1.1
- 300 019 Transportation Class 2.3
- 300 019 Stationary Use Class 3.1
EMC:
- IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
- IEC/EN-61000-4-3: Radiated Immunity (10V/m)
- IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
- IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
- IEC/EN-61000-4-5: Signal Surge Ports (1kV)
- IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
- IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
- IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
- IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
- EN55024: Information Technology Equipment (Immunity)
- EN50082-1/EN-61000-6-1: Generic Immunity Standard
- EN 50121-4: Railway EMC
Safety:
- UL/CSA/IEC/EN 60950-1
- IEC/EN 60825 Laser Safety
- ACA TS001
- AS/NZS 60950
- FDA Code of Federal Regulations Laser Safety
