- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Aironet
- Product Series
- 3500
- Product Condition
- Refurbished
- Product Type
- Wireless Access Point

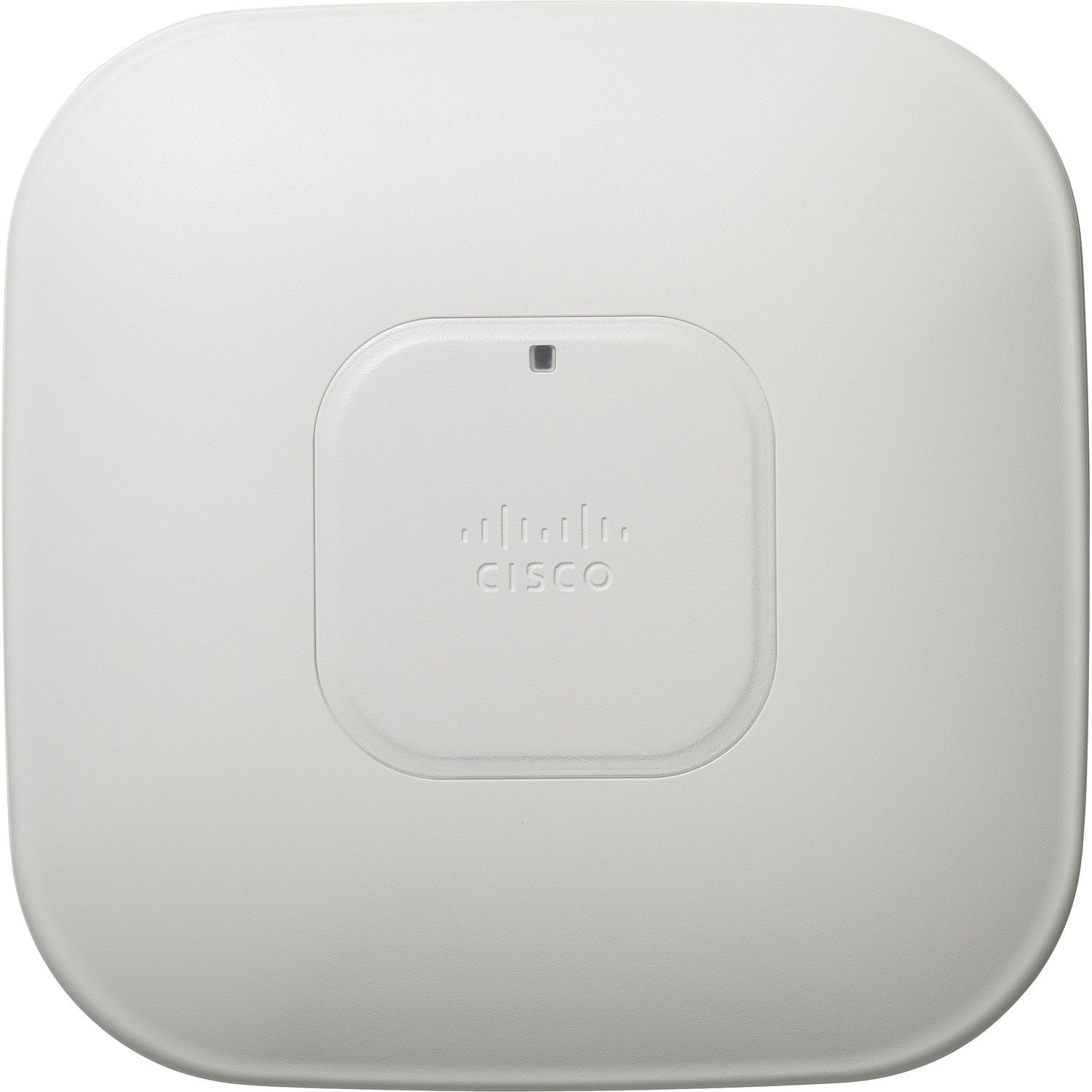

Cisco Aironet 3500 Series Access Points with Cisco CleanAir technology are the industry's first 802.11n access points to create a self-healing, self-optimizing wireless network. CleanAir technology is a systemwide feature of the Cisco Unified Wireless Network that improves air quality by detecting RF interference that other systems can't recognize, identifying the source, locating it on a map, and then making automatic adjustments to optimize wireless coverage. These innovative access points provide the highest-performance 802.11n connectivity for mission-critical mobility. By intelligently avoiding interference, the 3500 Series offers performance protection for 802.11n networks to help ensure reliable application delivery.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- Yes
- ISM Minimum Frequency
- 2.41 GHz
- ISM Maximum Frequency
- 2.46 GHz
- UNII Minimum Frequency
- 5.18 GHz
- UNII Maximum Frequency
- 5.83 GHz
- Total Number of Antennas
- 4
- Antenna Gain (Isotropic)
- 4 dBi
- 3 dBi
- Antenna Connector
- RP-TNC Connector
- Wireless Transmission Speed
- 300 Mbit/s
- Wireless Security
- WPA
- WPA2
- IEEE 802.11i
- IEEE 802.1x
- AES
- TKIP
- EAP-TLS
- EAP-TTLS
- EAP-MSCHAPv2
- PEAP
- EAP-FAST
- Features
- MIMO Technology
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 1
- Network (RJ-11)
- No
- PoE (RJ-45) Port
- Yes
- VGA
- No
- Serial Port
- No
- USB
- No
- Powerline
- No
- Management Port
- Yes
- Power Description
- Input Voltage
- 57 V DC
- Physical Characteristics
- Form Factor
- Ceiling Mountable
- Height
- 1.8"
- Width
- 8.7"
- Depth
- 8.7"
- Weight (Approximate)
- 2.30 lb
- Miscellaneous
- Certifications & Standards
IEEE Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1x
- IEEE 802.11i
- IEEE 802.11d
- IEEE 802.11h
Safety:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- UL 2043
- IEC 60950-1
- EN 60950-1
Radio Approvals:
- FCC Part 15.247, 15.407
- RSS-210 (Canada)
- EN 300.328, EN 301.893 (Europe)
- ARIB-STD 33 (Japan)
- ARIB-STD 66 (Japan)
- ARIB-STD T71 (Japan)
- AS/NZS 4268.2003 (Australia and New Zealand)
- EMI and susceptibility (Class B)
- FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- EN 301.489-1 and -17 (Europe)
- EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
