- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Aironet
- Product Series
- 700W
- Packaged Quantity
- 10
- Product Type
- Wireless Access Point

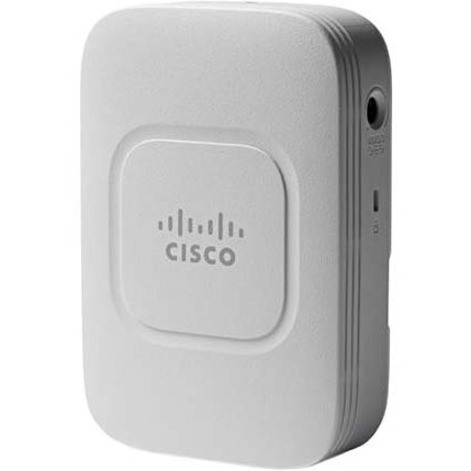

The Cisco® Aironet® 700W Series offers a compact wall plate mountable access point for hospitality and education focused customers looking to modernize their networks to handle today's increasingly complex wireless access demands.
With 802.11n dual-radio 2 x 2 multiple-input multiple-output (MIMO) technology providing at least six times the throughput of existing 802.11a/g networks, the Cisco Aironet 700W Series offers the performance advantage of 802.11n quality at a competitive price.
As part of the Cisco Unified Wireless Network, the 700W Series Access Point provides low total cost of ownership and investment protection by integrating seamlessly with the existing network.- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- Yes
- ISM Minimum Frequency
- 2.41 GHz
- ISM Maximum Frequency
- 2.46 GHz
- UNII Minimum Frequency
- 5.18 GHz
- UNII Maximum Frequency
- 5.83 GHz
- Antenna Gain (Isotropic)
- 2 dBi
- 4 dBi
- Wireless Transmission Speed
- 300 Mbit/s
- Wireless Security
- IEEE 802.11i
- WPA2
- WPA
- IEEE 802.1X
- AES
- TKIP
- EAP-TLS
- EAP-TTLS
- MSCHAPv2
- PEAP
- EAP-MSCHAPv2
- EAP-FAST
- PEAP v1
- EAP-GTC
- Features
- MIMO Technology
- LED Indicator
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 6
- Network (RJ-11)
- No
- PoE (RJ-45) Port
- Yes
- VGA
- No
- HDMI
- No
- Audio Line Out
- No
- Serial Port
- No
- USB
- No
- Powerline
- No
- Management Port
- Yes
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 6"
- Width
- 4"
- Depth
- 1.6"
- Weight (Approximate)
- 13.76 oz
- Miscellaneous
- Certifications & Standards
- FCC Bulletin OET-65C
- RSS-102
- 802.11a
- 802.11b
- 802.11g
- 802.11n
- 802.11h
- 802.11d
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- IEC 60950-1
- EN 60950-1
- FCC Part 15.247, 15.407
- RSS-210 (Canada)
- EN 300.328, EN 301.893 (Europe)
- ARIB-STD 33 (Japan)
- ARIB-STD 66 (Japan)
- ARIB-STD T71 (Japan)
- AS/NZS 4268.2003 (Australia and New Zealand)
- EMI and susceptibility (Class B)
- FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- SRRC (China)
- EN 301.489-1 and -17 (Europe)
- EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
