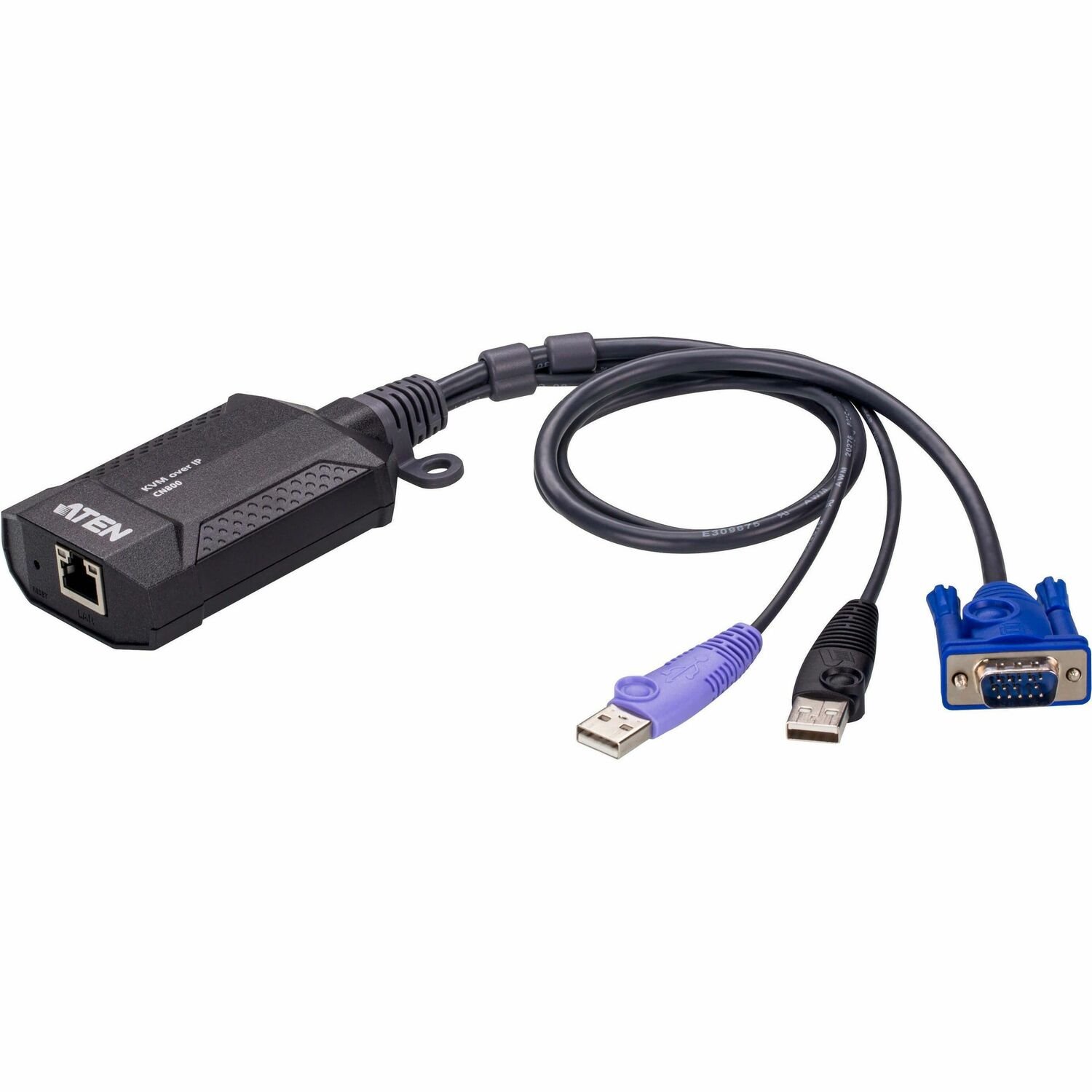

The ATEN CN800 offers superior video quality with HD resolutions up to 1920 x 1200 @ 60 Hz, facilitating easier KVM access. The CN800 USB VGA KVM over IP Mini provides "over-IP" access control for conventional KVM switches lacking built-in over-IP functionality. It enables system operators to monitor and access computers remotely using Windows and Java-based application programs. The CN800 connects to an intranet, either LAN or WAN simply by using an industry-standard Cat 5e/6 cable and to a target computer or server. WinClient and JavaClient are available for remote access, enabling IP connection and login from anywhere over the internet.
The ATEN CN800 uses the standard TCP/IP protocols for communication. It allows the connected server or computer to be accessed from any computer over the internet - whether that computer is located down the hall, in other areas of the country, or branch offices in other parts of the world. The CN800 provides a fast, reliable, and cost-effective way to remotely access and manage widely distributed multiple computer installations.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Device Type
- KVM over IP
- Data Link Protocols
- TCP/IP
- Features
- LED Indicator
- Bus Powered
- Video
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- USB Standard
- USB 2.0
- USB 2.0
- Yes
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of USB Ports
- 2
- Number of VGA Ports
- 1
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Physical Characteristics
- Height
- 1"
- Width
- 2.2"
- Length
- 3.67"
- Weight (Approximate)
- 6 oz
- Miscellaneous
- Package Contents
- CN800 USB VGA KVM over IP Mini
- 1x user instructions
- Compatibility
Cat 5 KVM Switches
- KH1508A
- KH1516A
- KH2508A
- KH2516A
Desktop KVM Switches
- CS82U
- CS84U
KVM over IP Switches
- KA8270
- KA8278
- KA8280
- KA8288
Management Software / Control Center
- CC2000 4.0
- CCVSR
Rack Mount KVM Switches
- CS1308
- CS1316
- CS1708A
- CS1716A
Video Converters
- VC810
- VC925
- VC920
- VC010
