Low-power, fan-less mini-ITX motherboard for Intel Celeron® Quad-Core J3455 processors, 2 x U-DIMM slots, VGA, HDMI, LVDS, M.2 E Key, 2 x COM.
- Fan-less mini-ITX Industrial MB with Intel Celeron® J3455 processors
- Supports 3 displays configuration by multiple interface: HDMI/ VGA /LVDS
- 4-year longevity supply with EOL and Last Buy Notice
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0-50°C

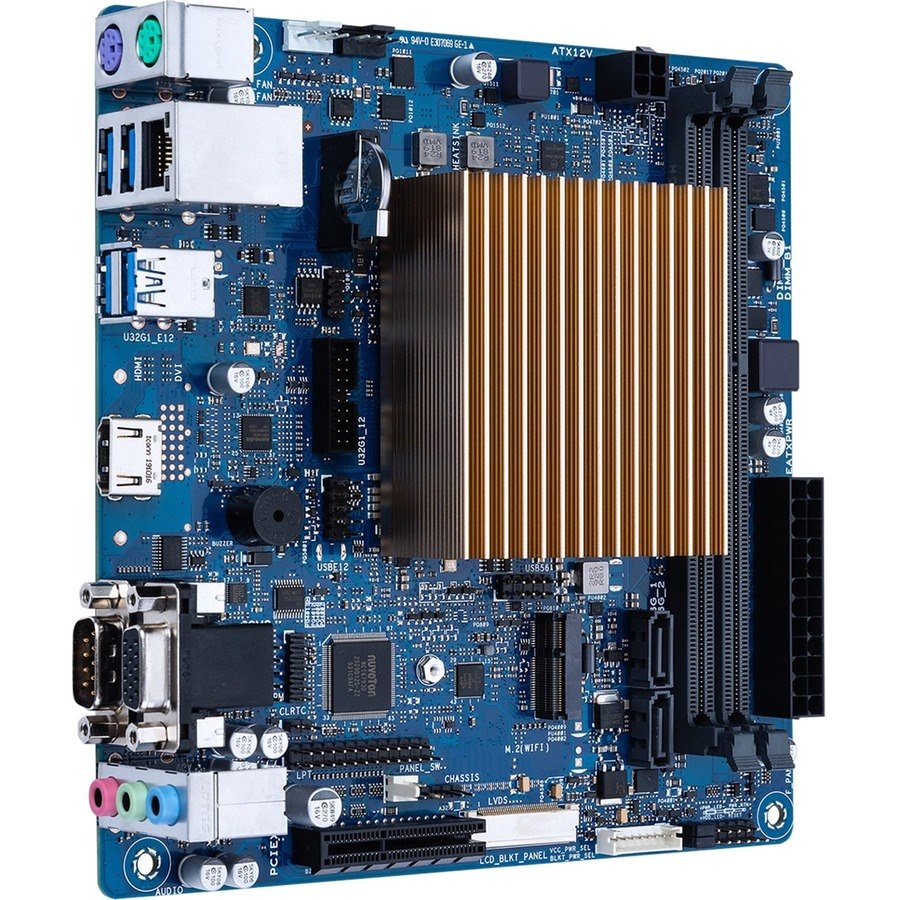

ASUS J3455I-CM-A is an Industrial MB with stable and reliable performance. J3455I-CM-A includes dual COM ports, M.2 E Key slot, PCIe2.0 x 4, parallel header and supports multi graphic interface: HDMI/VGA/LVDS. J3455I-CM-A is designed for long-lasting stability and reliability in embedded application.
As the world's No.1 motherboard brand, ASUS offers MBs and SBCs with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Type
- Desktop Motherboard
- Warranty
- Limited Warranty
- 2 Year
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Total Processor Supported
- 1
- Processor Socket
- Socket BGA-1296
- Integrated Processor
- Integrated Processor Type
- Celeron
- Integrated Processor Model
- J3455
- Integrated Processor Speed
- 1.50 GHz
- Integrated Processor Core
- Quad-core (4 Core)
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 8 GB
- Memory Technology
- DDR3L SDRAM
- Memory Speed Supported
- 1866 MHz
- 1600 MHz
- 1333 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- HD Graphics 500
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Total Number of PCI Express Slots
- 1
- Number of PCI Express x4 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.2 Ports
- 4
- VGA
- Yes
- HDMI
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 2
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 6
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 2
- Physical Characteristics
- Form Factor
- Mini ITX
- Width
- 6.7"
- Depth
- 6.7"
- Miscellaneous
- Package Contents
- J3455I-CM-A Desktop Motherboard
- 1 x IO shield
- 1 x SATA 6G CABLE
- 1 x M.2 screw pack
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
