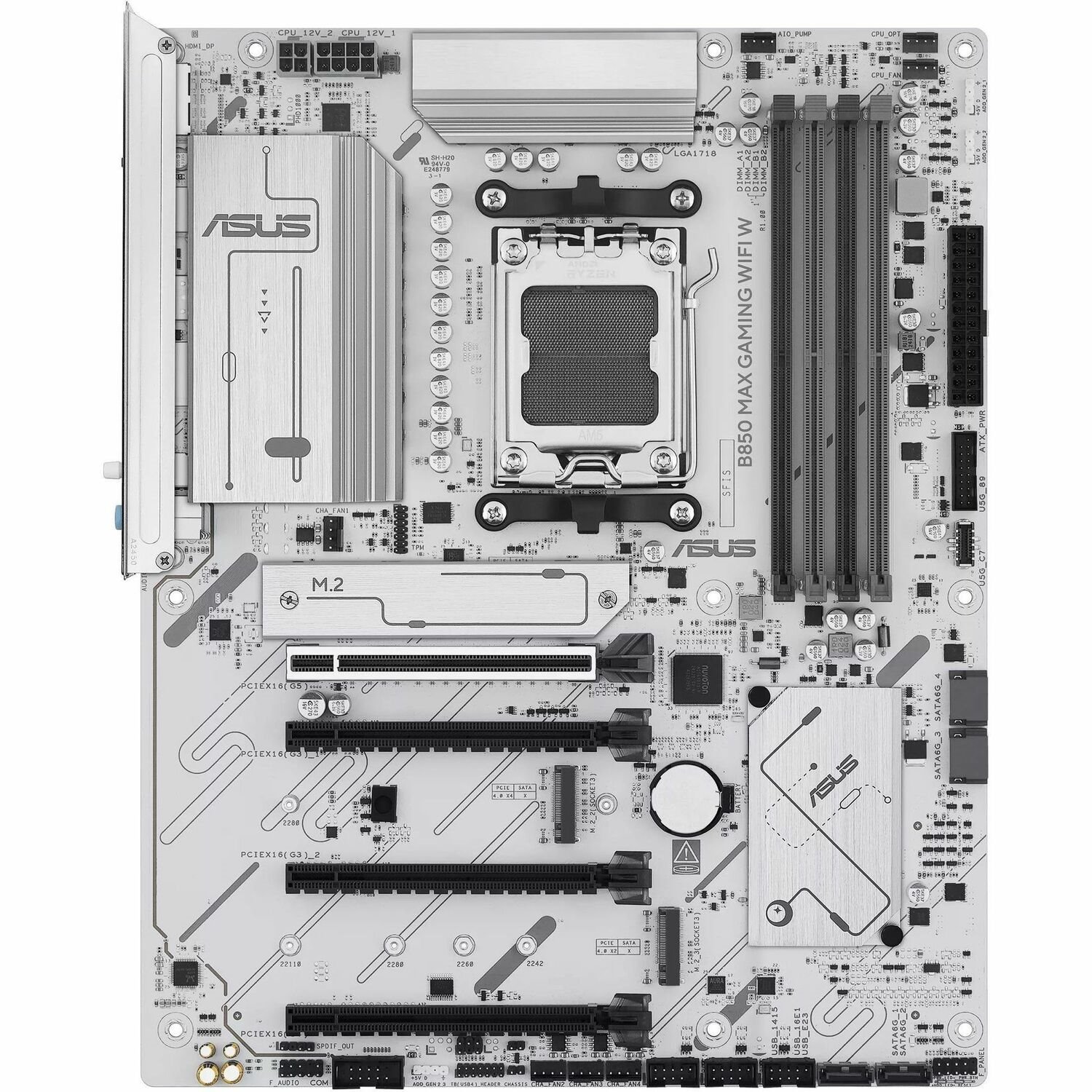

B850 MAX GAMING WIFI W
B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen™9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance AI Solutions
ASUS AI Solutions include AI Cache Boost to supercharge large language model (LLM) workflows, ASUS AI Advisor as your technical expert with expertise in PC performance.
AI Cache Boost
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Digital Power Design
B850 MAX GAMING WIFI W features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of ASUS B850 motherboards. The B850 MAX GAMING WIFI W maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.2
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the B850 MAX GAMING WIFI W offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com
- Brand Name
- Asus
- Product Type
- Gaming Desktop Motherboard
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- B850
- Total Processor Supported
- 1
- Processor Socket
- Socket AM5
- Processor Supported
- Ryzen 7
- Ryzen 9
- Ryzen 5
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 8000 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- I/O Expansions
- Total Number of Expansion Slots
- 5
- PCI Express Standard
- PCI Express 3.0
- PCI Express 4.0
- PCI Express 5.0
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x16 Slots
- 5
- Interfaces/Ports
- Total Number of USB Ports
- 8
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 3
- Total Number of Onboard USB Ports
- 9
- Number of Onboard USB 2.0 Ports
- 6
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12.01" (305 mm)
- Depth
- 9.61" (244 mm)
- Miscellaneous
- Package Contents
- B850 MAX GAMING WIFI W Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 rubber packages
- 3 x Screw packages for M.2 SSD
- 1 x Quick start guide
- Brand Compatibility
- AMD
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
