- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.com
- Brand Name
- Allied Telesis
- Product Series
- x320
- Product Type
- Layer 3 Switch

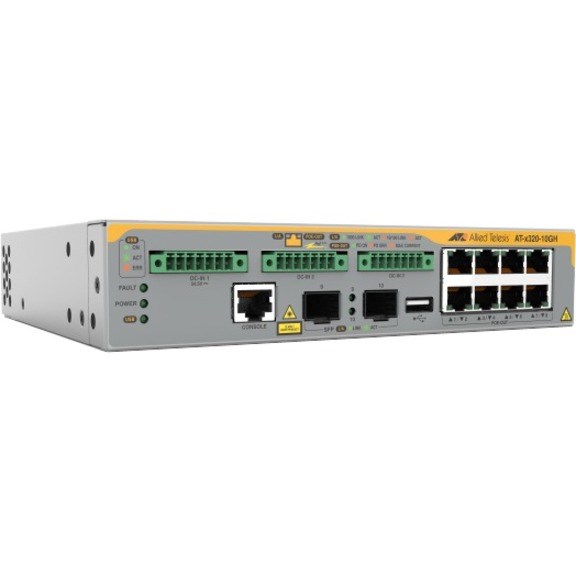

TAA Compliant 8 x 10/100/1000T PoE++ ports, 2 x 100/1000X SFP uplinks, and a power budget of up to 720W make the x320-10GH ideal to connect power edge switches and IoT devices in today's smart building networks.
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet PoE++
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1x
- IEEE 802.2
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.1ag
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3ac
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 3
- Power Consumption
- 21 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Compact
- Desktop
- Height
- 1.7"
- Width
- 8.3"
- Depth
- 7.1"
- Weight (Approximate)
- 3.53 lb
- Miscellaneous
- Package Contents
- x320-10GH Layer 3 Switch
- 19 inch Rack-mount Brackets
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
