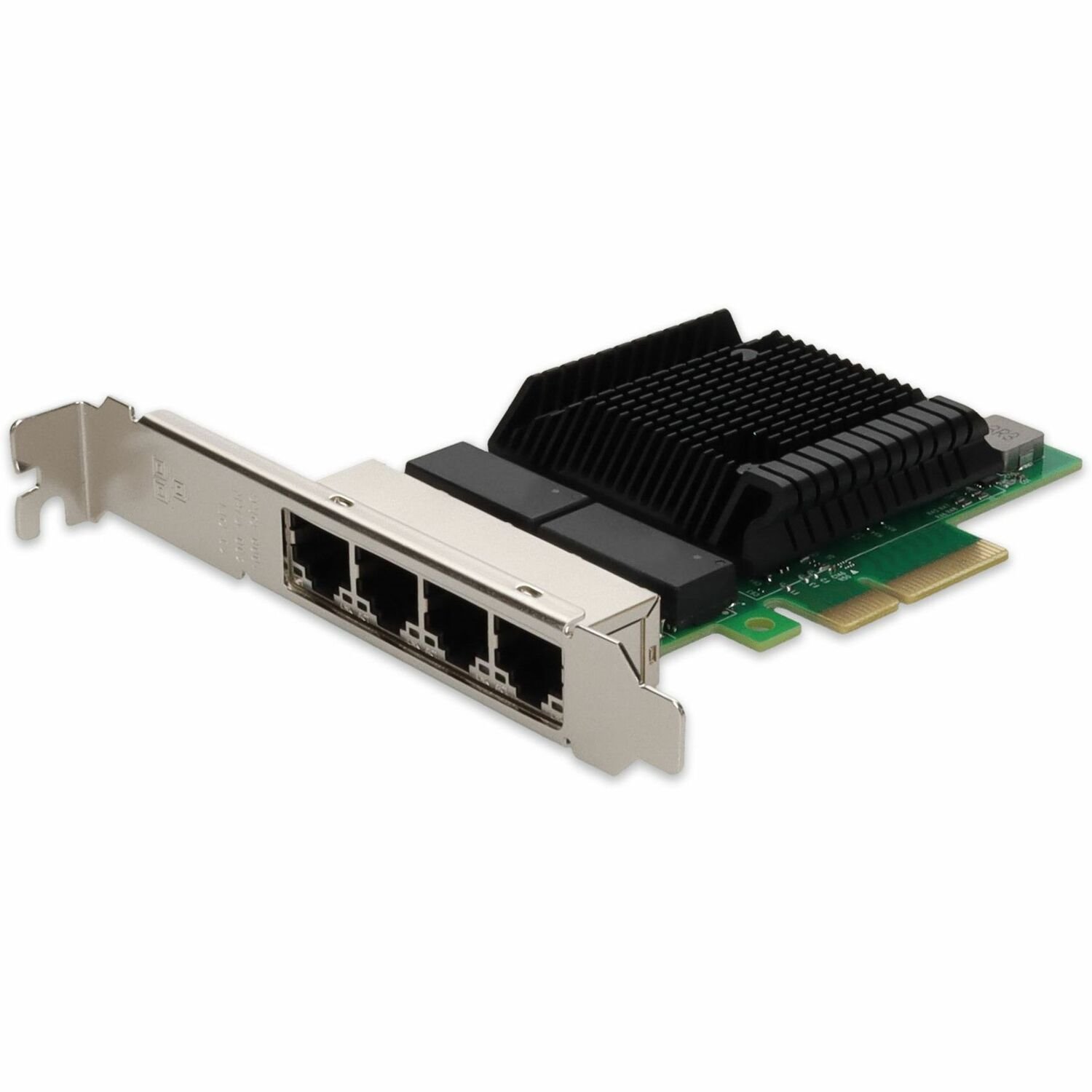

This is a Gigabit Ethernet PCIe 2.0 x4 network interface card with quad RJ-45 ports that comply with IEEE 802.3 standards. It is based on an Broadcom 5719 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10/100/1000Mbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The quad RJ-45 ports operate over copper patch cable, allowing for an operating distance of 100m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
- General Information
- Manufacturer
- AddOn
- Manufacturer Website Address
- http://www.addoncomputer.com
- Brand Name
- AddOn
- Product Type
- Gigabit Ethernet Card
- Technical Information
- Chipset Manufacturer
- Broadcom
- Chipset Model
- 5719
- Interfaces/Ports
- Host Interface
- PCI Express 2.0 x4
- Total Number of Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 4
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Data Transfer Rate
- 8 Gbit/s
- Network & Communication
- Network Technology
- 10/100/1000Base-T
- Physical Characteristics
- Height
- 4.2"
- Width
- 0.8"
- Depth
- 3.7"
- Weight (Approximate)
- 6.40 oz
- Miscellaneous
- Application/Usage
- Network
- Device Supported
- PC
- Platform Supported
- PC
- Operating System Compatibility
- Windows Small Business Server 2009
- Windows 8.1 x32
- Windows Server 2008 x32
- Windows Server 2003 x32
- Windows 8 x32
- Windows Server 2012 R2 x64
- Linux Kernel 2.4.x
- Linux Kernel 2.6.x
- Linux Kernel 3.x
- FreeBSD 7.x
- Windows Vista x32
- Windows XP
- Windows XP Professional
- Windows XP Professional x64
- Windows XP x64
- Windows Vista x64
- Windows 7 x64
- Windows 8.1 x64
- Windows Server 2008 x64
- Windows Server 2003 x64
- Windows 8 x64
- Windows 7 x32
- Windows Server 2008 R2
